Foundation problems can be pretty daunting when it comes to keeping our homes and buildings strong and secure. Often, these issues show up in sneaky ways—like tiny cracks, gaps, or even floors that seem a little bit off. It’s understandable for homeowners to feel a bit anxious or uncertain when these signs appear!
Thankfully, advancements in technology have provided industry professionals with sophisticated tools to diagnose foundation issues with precision and efficiency. In this article, we will delve into key techniques employed in foundation settlement diagnostics, including the use of plates and sensors.
By learning more about how these tools work, you’ll gain a better appreciation for their role in checking the health of foundations and spotting any repairs that might be needed.
What Is Foundation Settlement?
Foundation settlement is the downward movement of a structure’s base, often due to the underlying soil’s inability to support the loads imposed by the building. This occurs naturally as soil consolidates over time or due to external factors such as changes in soil moisture levels, seismic activity, or harsh conditions in the weather.
When a foundation settles unevenly, it can lead to structural issues such as cracks in walls, misaligned doors and windows, and, in severe cases, severe structural damage or even complete failure.
To address these concerns, diagnostic tools play a vital role in identifying, monitoring, and assessing foundation ground settlement and building settlement, ensuring that any issues related to structural and soil movements are detected early for effective remediation
Causes of Foundation Settlement
Understanding the root causes of foundation settlement is essential for effective diagnosis and prevention. Various factors can contribute to this issue, ranging from soil characteristics to environmental influences and structural design.
Below are some of the primary causes that could lead to foundation problems:
Soil-Related Causes
- Expansive Soil: This type of soil is particularly problematic as it swells when wet and shrinks during dry periods or extreme environmental conditions, causing significant movement beneath foundations and compromising the long-term stability of the structure.
- Poor Soil Compaction: Inadequate compaction during construction can leave voids and destabilize the soil, increasing the risk of settling over time.

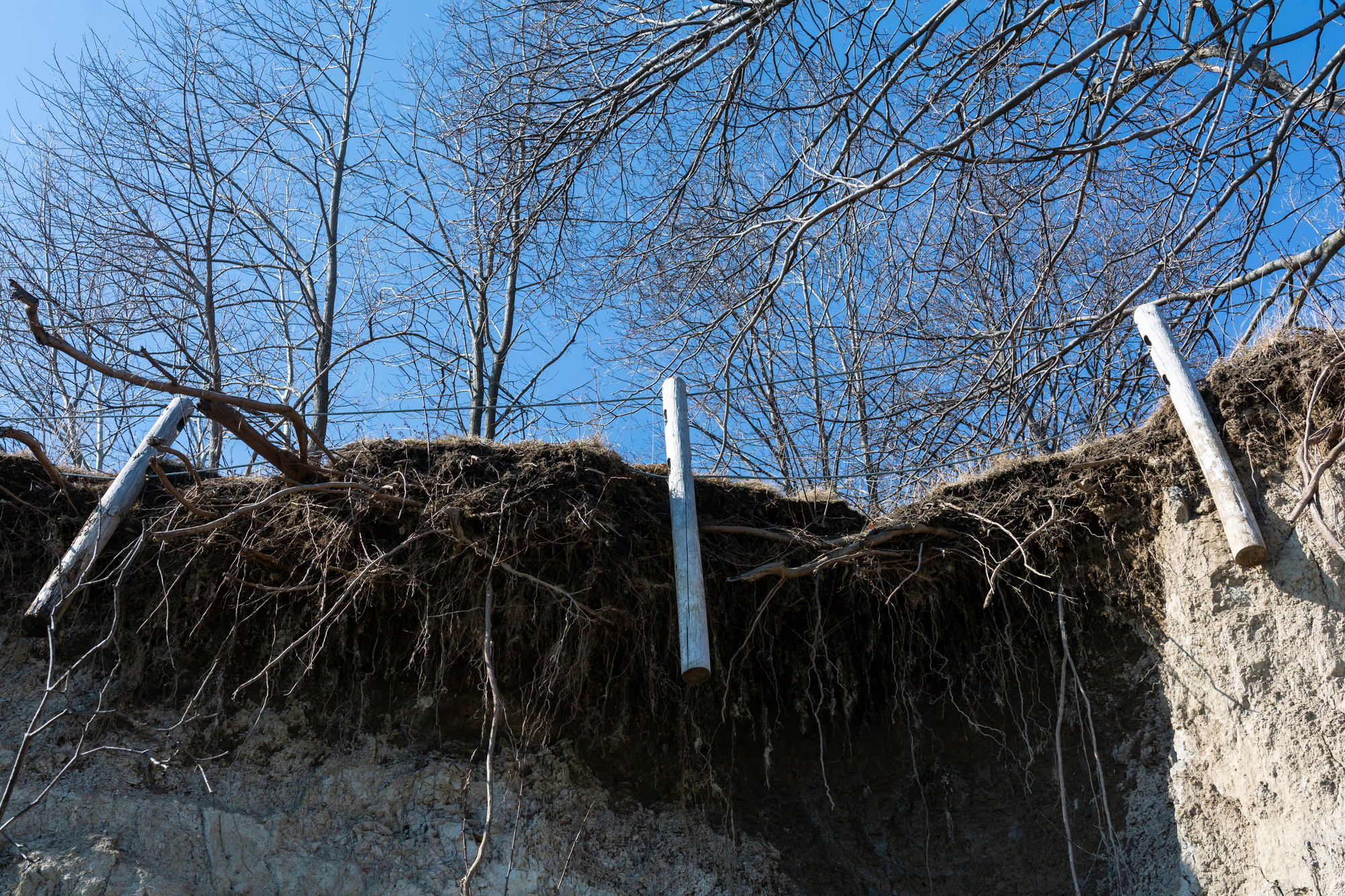

- Soil Erosion: Water flow from heavy rains or plumbing leaks can erode soil beneath the foundation, compromising its support and stability.
Environmental Factors
- Seasonal Changes: Fluctuations in climate and extreme weather conditions, such as heavy rains or droughts, can alter soil moisture levels, leading to potential settlement as the soil adjusts.
- Nearby Construction Activity: Vibrations and disturbances from construction projects in proximity to a structure can disrupt the ground and affect its stability.
Structural Factors
- Poor Design or Materials: Foundations that are inadequately designed or constructed using substandard materials may not withstand the loads imposed by the structure, leading to settlement.
- Uneven Distribution of Loads: If a building’s weight is not evenly distributed, certain areas may experience more pressure than others, causing localized sinking.
All of these factors that cause changes in foundation soil can lead to differential settlement, which can affect the structural integrity of the building and requires careful observation of cracks, misalignments, and other parameters. Effective settlement monitoring helps to identify and manage risks associated with ground displacement, which can lead to significant structural issues if left unchecked.
Which Foundations Are More Prone to Settlement?
Understanding which types of foundations are more susceptible to settlement is crucial for homeowners, builders, and engineers alike.
Certain foundation designs, materials, and environmental factors contribute to a higher likelihood of experiencing settlement issues.
Here, we delve into the various foundation types and conditions that warrant close attention.
Slab-on-Grade Foundations vs. Pier-and-Beam Foundations
Slab-on-grade foundations are direct concrete slabs poured at ground level, making them vulnerable to soil movement directly beneath them. When the underlying soil shifts due to moisture changes or other factors, the entire slab can crack or settle unevenly, leading to various structural problems.
In contrast, pier-and-beam foundations elevate the structure above the ground, distributing weight over piers sunk deeper into the soil.
While these are typically more adaptable to minor shifts in soil, they can still experience settlement if the piers are not positioned correctly or if the soil beneath them becomes unstable.
Older Foundations and Materials Prone to Wear Over Time
Older foundations, particularly those built with outdated techniques or subpar materials, are generally more prone to settlement. Aging concrete can develop cracks that compromise stability, while wooden beams may rot or be affected by pests, leading to weakened structural integrity.
These issues are often exacerbated in areas with fluctuating moisture levels, making regular inspection and maintenance essential for prolonging their lifespan.
Homes in Regions with Clay-Heavy Soil or Floodplains
Properties situated in clay-heavy soil or floodplain areas face heightened risks of foundation settlement. Clay is particularly notorious for its expansive nature; it absorbs and releases moisture, causing significant soil movement that can push and pull on foundations unpredictably.
Homes in floodplains are also at risk due to periodic saturation and erosion, which can exacerbate settling issues.
By recognizing the foundations and conditions that are more susceptible to settlement, property owners can take proactive measures to monitor and mitigate potential risks, ensuring the stability of the structure for years to come.
Signs of Foundation Settlement
Identifying these indicators early can prevent more serious structural issues down the line.
Here are some common symptoms to be vigilant about:
Visible Cracks in Walls, Ceilings, or Floors

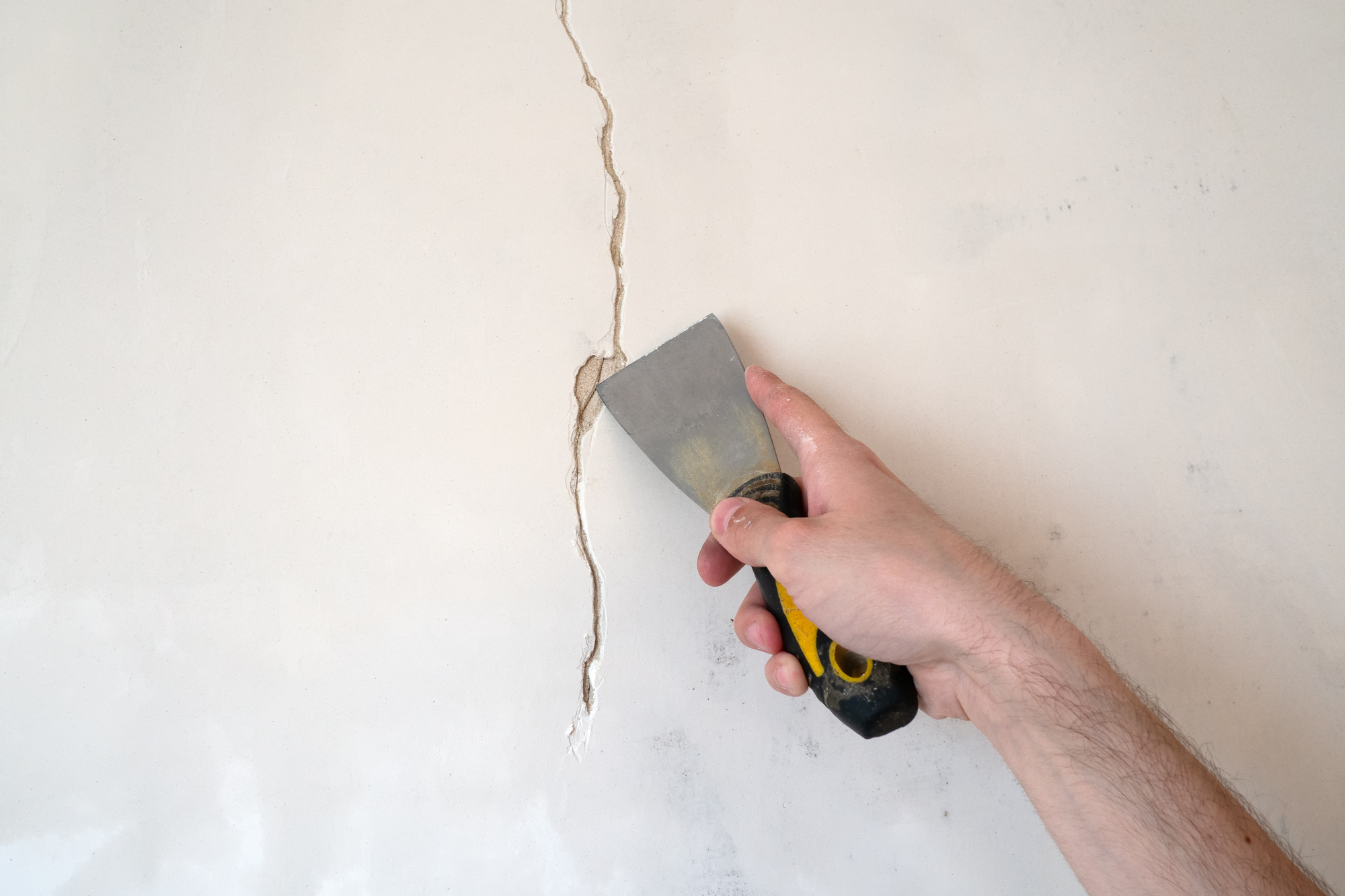

One of the most apparent signs of foundation settlement is the appearance of visible cracks. These can manifest in various locations, including walls, ceilings, and floors. Horizontal cracks, in particular, may indicate shifting or settling soil beneath your foundation.
Vertical cracks may also occur, though they can sometimes be less alarming unless they widen or deepen over time.
Doors and Windows That Stick or Won’t Close Properly
If you notice that doors or windows that previously opened and closed smoothly now stick or don’t latch properly, it could be a sign of foundation issues. As a structure settles, the frames can warp or become misaligned, leading to operational difficulties.
Uneven Floors or Noticeable Sinking
Uneven floors can be not only unsightly but also a significant indicator of foundation settlement. Homeowners might experience noticeable inclines or dips in their flooring, which can lead to a host of other problems, including difficulties with furniture placement and increased stress on the structure.
Gaps Around Doors, Windows, or Baseboards
Gaps forming around doors, windows, or baseboards may suggest that the foundation is settling unevenly. These spaces can allow air and moisture penetration, further exacerbating any structural issues and leading to increased energy costs.
Tools Used for Measurements of Settlement
It is essential to monitor settlement, including monitoring building settlement and monitoring settlement in general, to detect and address potential structural issues early.
When it comes to assessing foundation settlement, a variety of tools are available, each designed for specific uses and offering varying degrees of precision. Understanding the capabilities and applications of these instruments is crucial for homeowners and professionals alike, as it enables them to choose the appropriate measuring method for their circumstances. In addition to proactive measures specific high accuracy and high reliability tools are vital for ensuring the safety and longevity of various structures.
Let’s explore some of the most widely used foundation settlement measurement tools.
Settlement Gauges
These are devices designed to monitor and record the amount of settlement in a structure or ground surface. As settlement gauges are used to measure the vertical displacement of structures, they are often used in construction, geotechnical engineering, and monitoring projects where precise measurement of settlement over time is critical.
They work by being installed on a structure or soil surface to measure displacement relative to a stable reference point.
- May use mechanical indicators, dial gauges, or electronic sensors to track movement.
- Some advanced gauges are equipped with wireless capabilities for real-time data collection and remote monitoring.
Typical applications are to monitor differential settlements in bridges, embankments, buildings, and other structures, as part of a comprehensive settlement system, as well as assessing the effectiveness of foundation repairs or reinforcements. The data collected from these systems provide accurate information on ground movements, guiding corrective actions to prevent significant property damage and project delays.
Settlement Plates
Another commonly used tool to measure vertical displacements in soil are Settlement plates. Flat, rigid plates are placed on the ground or at specific layers of soil to measure settlement.
They are a cost-effective and simple method used in geotechnical monitoring projects. They also play a crucial role in evaluating the progress of ground improvement techniques, particularly when surcharging compressible soils.
A steel or rigid settlement plate is installed on the soil layer of interest, often with a riser pipe attached for surface-level monitoring. As the soil settles, the vertical movement of the plate is measured using surveying instruments or reference points. Measurements are taken periodically to track settlement trends.
They’re used in large-scale projects like roadways, embankments, or landfills where soil settlement is anticipated and help engineers design foundations or remediation strategies by providing insights into settlement rates and patterns.
Laser Levels
Laser levels are an innovative and highly accurate measurement tool commonly employed for leveling and alignment tasks. These devices project a laser beam, creating a precise reference line that allows users to assess the height of a structure consistently. Ideal for initial assessments, laser levels can quickly identify discrepancies in elevation across a foundation, making it easier to pinpoint any areas of concern that may suggest settlement.
Electronic and Manual Levels
Both electronic and manual levels, including water levels, serve as practical instruments for quick onsite assessments. Water levels utilize the principle of fluid mechanics to establish a level, while digital levels can provide more instantaneous readings. Both types are essential for contractors and builders who need fast, reliable data while working on-site, leading to informed decisions without significant delays.
Settlement Monitoring Sensors
Wireless settlement monitoring sensors are designed to monitor foundation stability in the long term. These advanced tools continuously track minor movements and changes over time, enabling property owners to identify potential settlement issues before they become critical. With real-time data, homeowners can proactively address concerns, ensuring optimal safety and structural integrity.
Extensometers
Extensometers are specialized devices that measure exact changes in distance between points, such as cracks or structural components. These sensitive measuring instruments can monitor minute shifts in a structure, providing vital insight into the stability and health of a foundation. Among the typical applications of extensometers are especially useful during periods of heavy rainfall or seismic activity when movements are more pronounced.
Traditional Plumb Bobs and Spirit Levels
Despite the advent of modern technology, traditional tools like plumb bobs and spirit levels remain relevant in specific scenarios. These simple yet effective instruments provide immediate feedback on vertical alignment and horizontal leveling, making them valuable for basic assessments or in conditions where advanced equipment may not be feasible.
Geotechnical Tools
Advanced geotechnical tools such as penetrometers and inclinometers are critical for in-depth analysis of soil properties and structural displacement; as well as monitoring ground movement. Penetrometers measure soil resistance and density, while inclinometers assess vertical and lateral movements in structures. For detailed diagnostics, ground-penetrating radar can uncover subsurface conditions, allowing for comprehensive evaluations of foundation integrity. Monitoring changes in pore water pressure through piezometers is critical for evaluating the effects of surcharging on compressible soils and the overall progress of soil consolidation treatments.
Understanding these measurement tools empowers property owners and professionals to assess and address foundation settlement proactively, safeguarding structures for years to come.
Diagnostic Process for Foundation Settlement
Assessing foundation issues is a methodical process that requires both keen observation and precise measurements. Professionals often start with a systematic visual inspection to identify any visible signs of distress, such as cracks in the walls or misaligned doors and windows. However, visual cues alone may not provide a complete picture of the foundation’s condition. Accurate diagnostics are crucial in preventing project delays by facilitating early detection of issues and guiding timely corrective actions.
Step 1: Initial Visual Inspection
The first step in diagnosing foundation settlement is a thorough visual examination of the structure. Inspectors look for common indicators of foundation problems, including:
- Cracks in walls and floors
- Gaps around windows and doors
- Uneven flooring
- Outside grading issues that may direct water toward the foundation
Step 2: Measuring and Assessing
Following the visual inspection, professionals employ a variety of measurement tools to gather quantitative data. This step combines traditional methods with advanced technology to ensure accurate assessments.
Step 3: Integrating Sensor Technology
In recent years, the integration of sensor technology has revolutionized foundation diagnostics. Various types of sensors—such as strain gauges, tilt meters, and temperature sensors—are now used to collect real-time data over extended periods. This continuous monitoring helps professionals capture dynamic changes in a foundation’s behavior and identify patterns that may indicate underlying issues.
This multi-faceted diagnostic approach not only enhances accuracy but also establishes a robust foundation for planning necessary repairs or reinforcements.
Through a blend of traditional inspection methods and modern technology, experts can diagnose issues with confidence and skill, ultimately protecting the integrity of homes and buildings.
Why Professional Evaluation Matters
When it comes to foundation ground settlement issues, consulting with foundation repair specialists is crucial. While some homeowners might consider diagnosing and addressing these problems on their own, enlisting the expertise of professionals can make a significant difference in outcomes.
Risks of DIY Diagnostics and Repairs
Attempting DIY diagnostics or repairs may seem like a cost-effective solution, but it can lead to serious complications. Homeowners may misinterpret warning signs, overlook hidden issues, or choose inappropriate repair methods. This not only risks exacerbating the original problem but can also result in significant financial loss. Inadequate repairs can lead to recurring issues, causing even more damage over time and creating a cycle of constant repairs that could have been avoided.
Benefits of Expert Insights in Choosing the Best Repair Strategies
One of the primary advantages of working with foundation repair specialists is their ability to recommend appropriate repair strategies. They consider various factors, including soil composition, climate conditions, and the specific architecture of the structure, to suggest the best course of action. Their insights can save time and money by ensuring that the repairs performed address the root cause of the problem rather than just the symptoms.
Moreover, professionals often offer warranties and guarantees on their work, providing homeowners with peace of mind.
This level of assurance further emphasizes the importance of professional evaluation by qualified experts. By investing in their knowledge and skills, homeowners can be confident in sustainable solutions that protect their structures for the long term.
Consequences of Undiagnosed or Unrepaired Foundation Settlement
Ignoring or failing to address foundation settlement issues can lead to a host of serious consequences. As the foundation of a structure shifts, it can cause a variety of problems that extend beyond mere cosmetic damage.
Understanding these ramifications is essential for homeowners to prioritize timely assessments and repairs, ultimately safeguarding their investment and maintaining the safety of their living environment.
Foundation settlement can result in the following:
- Structural Damage: Over time, the progressive weakening of the foundation can lead to potential structural failure, resulting in cracks or shifts in walls, beams, and load-bearing elements.
- Increased Repair Costs: Minor settlement problems can quickly develop into major damage that necessitates extensive and expensive repairs. If addressed too late, they may even lead to the need for a complete foundation replacement.
- Damage to Interior Features: Cracked or uneven flooring, along with damaged tiles, can occur as a result of foundation settlement, leading to stuck or misaligned doors and windows that progressively worsen over time.
- Plumbing and Utility Issues: Shifting or settling foundations can cause pipes to rupture, resulting in leaks or flooding, and may also disrupt utility connections such as HVAC systems and electrical lines.
- Decreased Property Value: Properties displaying visible foundation problems or a history of settlement often experience a substantial decline in market value, making them harder to sell and complicating insurance acquisition.
- Safety Hazards: Compromised structural integrity due to foundation settlement creates significant safety hazards for occupants, with the potential risk of collapse in severe cases if these issues remain unaddressed.
Undoubtedly, the stakes are high when it comes to addressing foundation settlement. Early diagnosis and professional intervention are crucial steps in preventing minor issues from escalating into significant, costly problems. If you notice any signs of foundation settlement in your home, don’t hesitate to seek expert advice.
